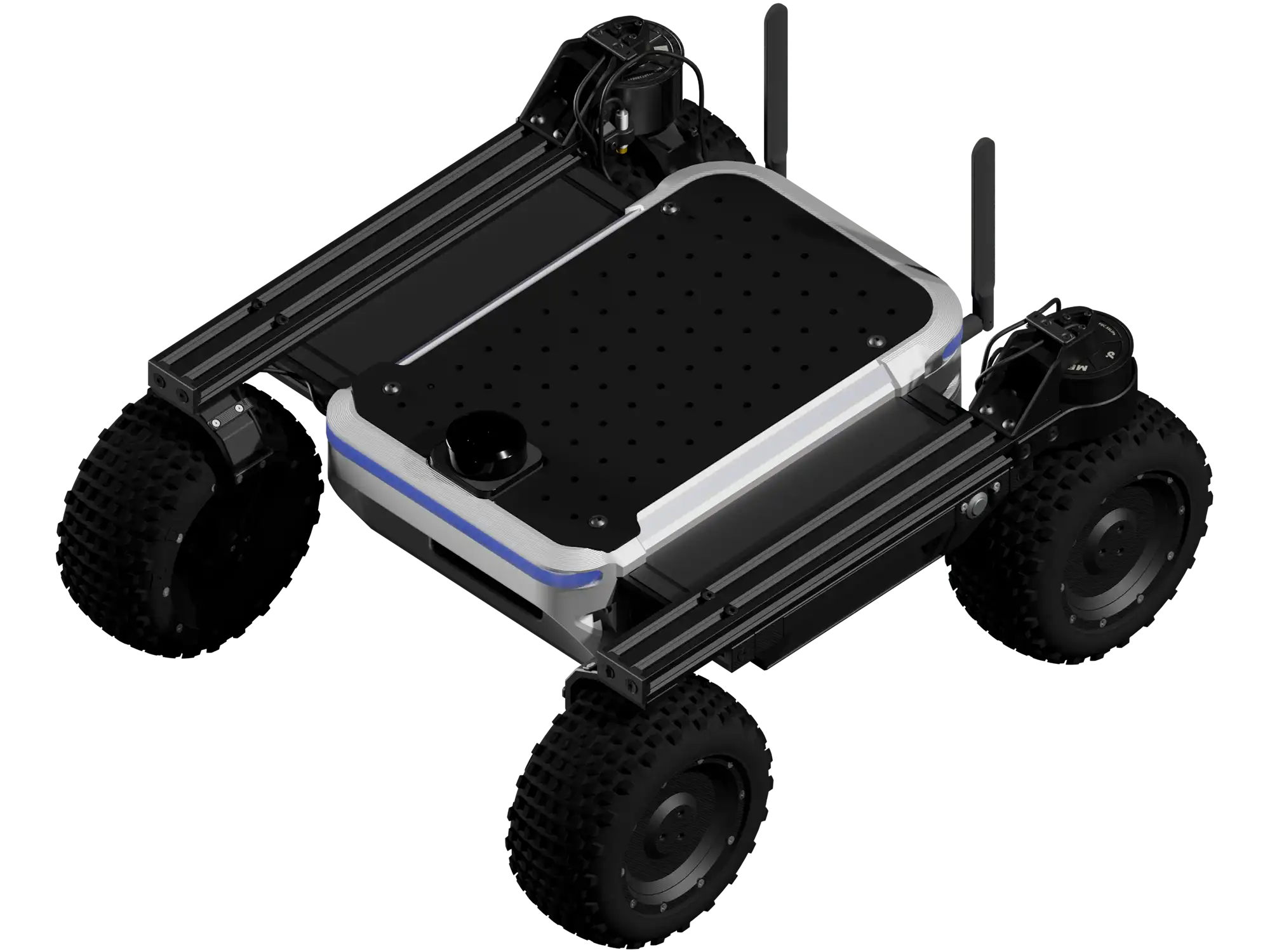

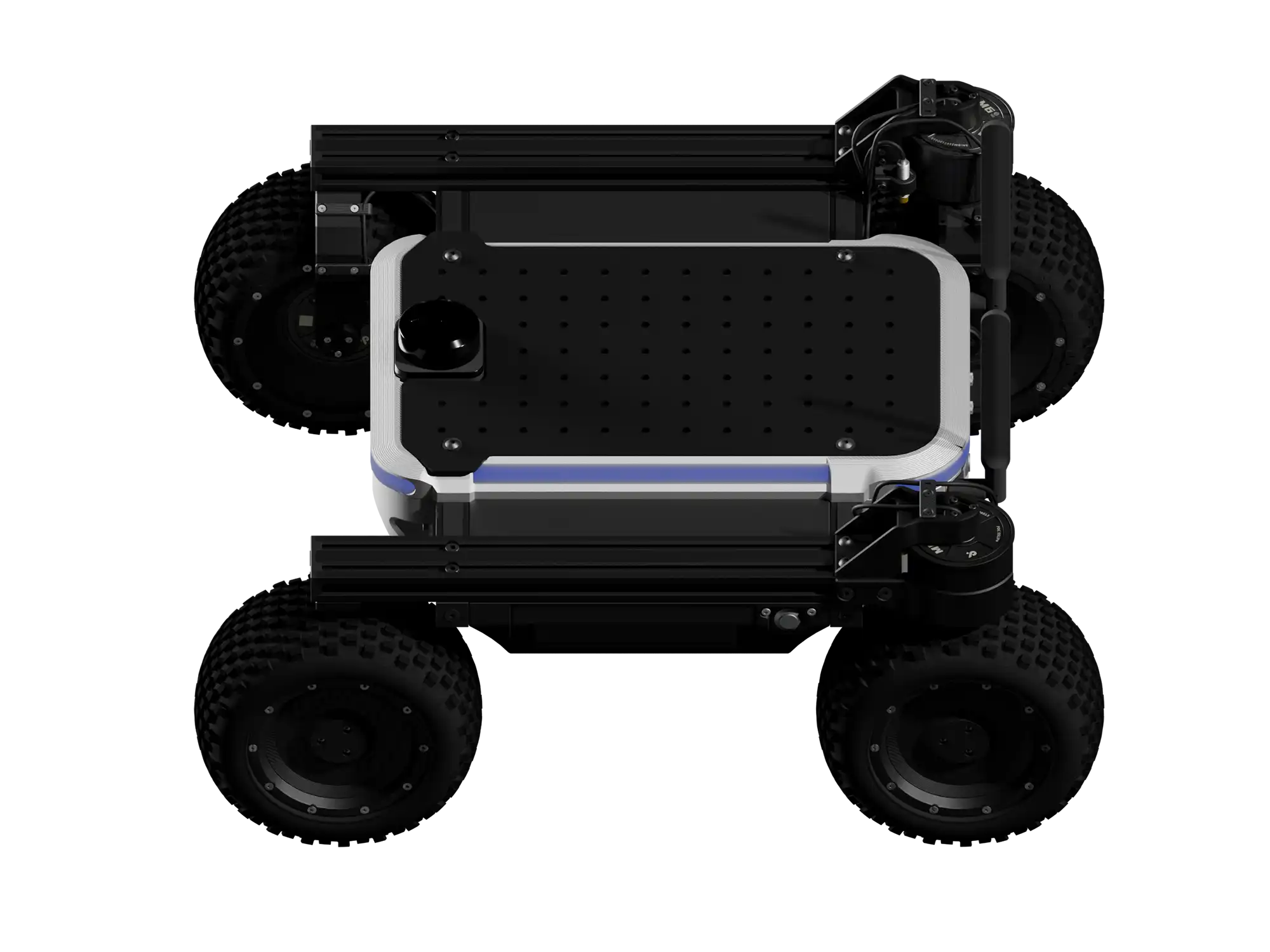

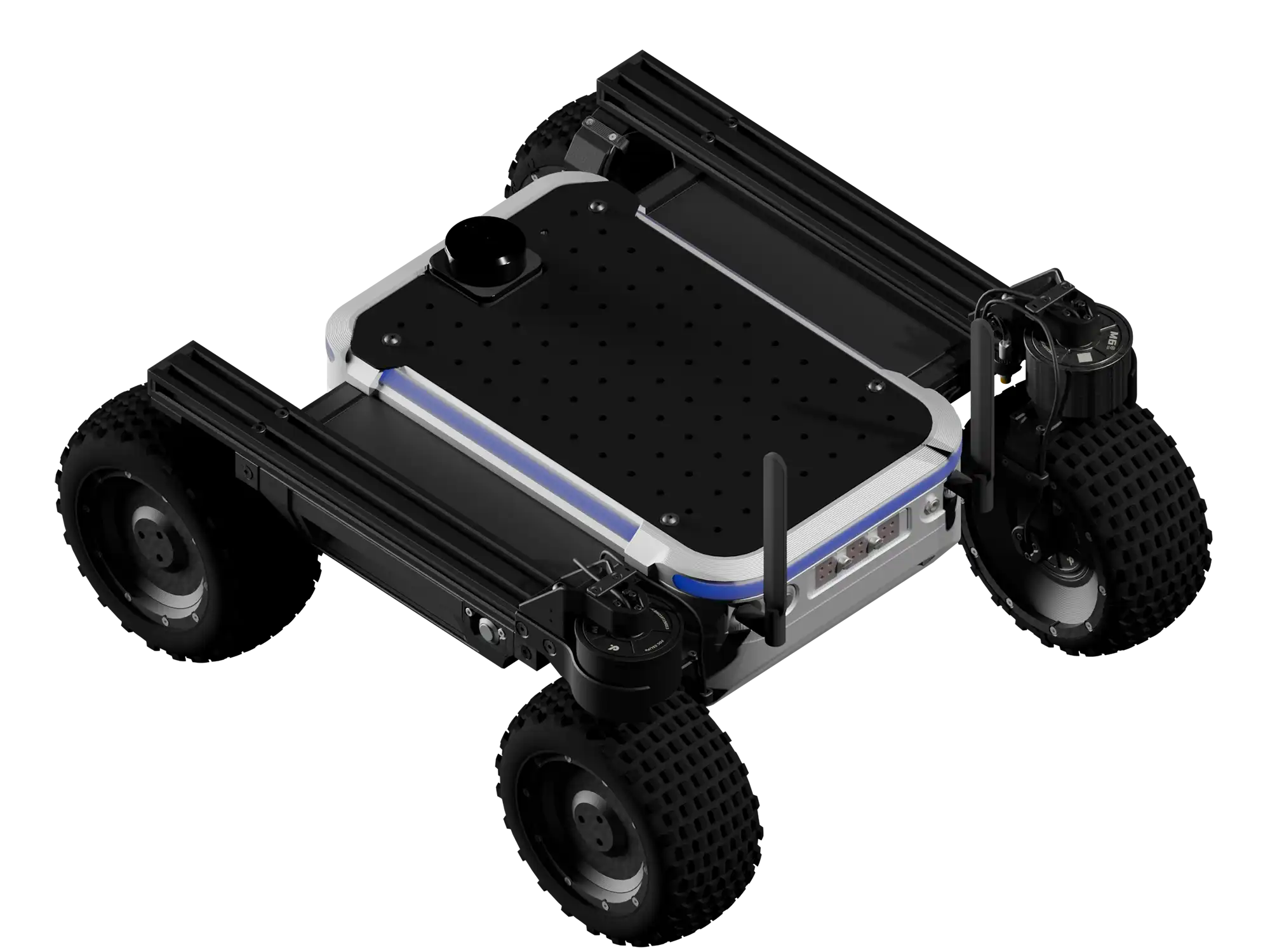

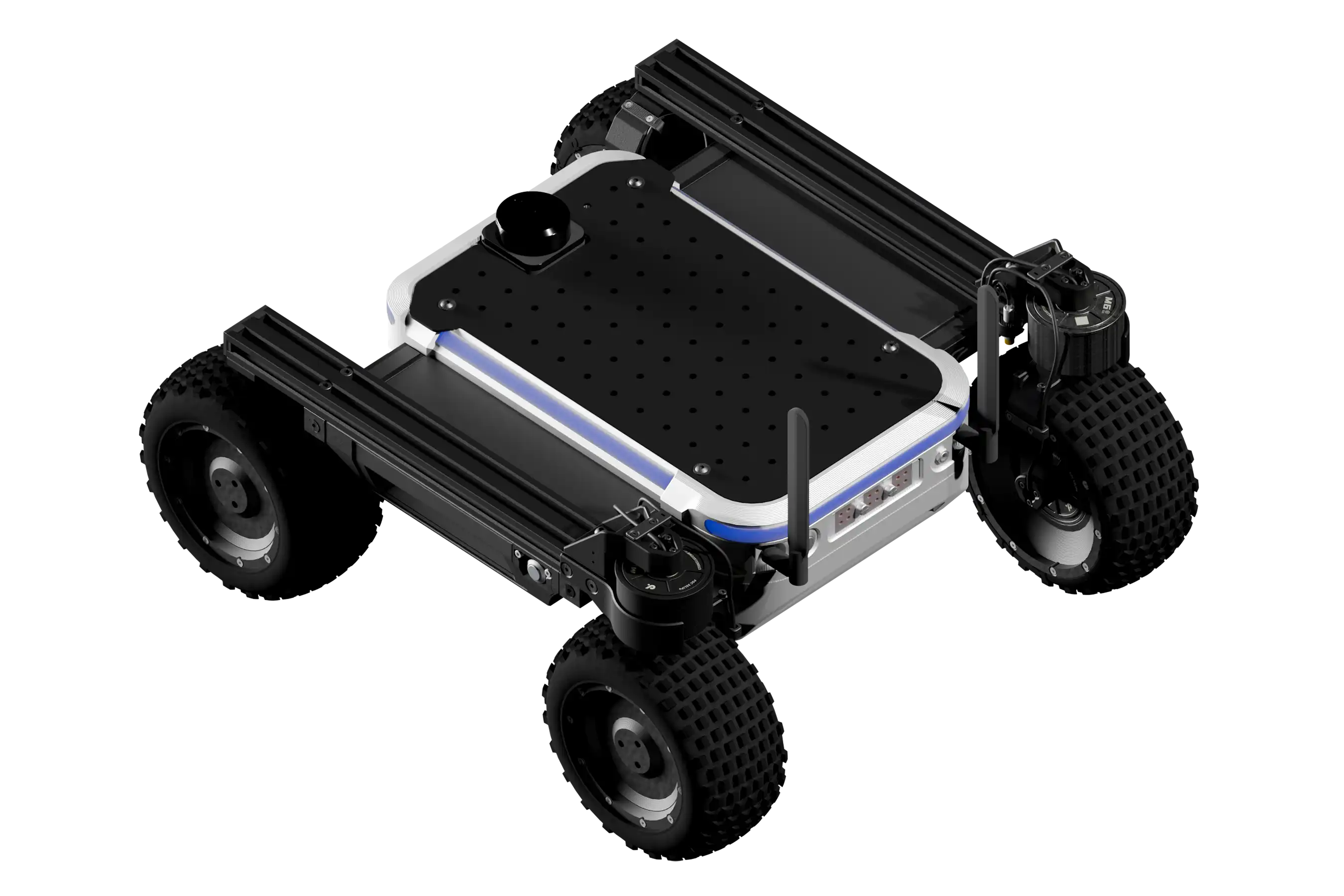

Introducing Raph Rover from Fictionlab
Built on years of proven success of its smaller brother - Leo Rover, new Raph Rover expands the limits of what a compact rover can achieve. With more payload, higher speed, advanced steering, and real-time control, it’s ready to power the next wave of scientific exploration, industrial applications, and creative robotics projects.
Raph Rover: Your Platform for Every Mission

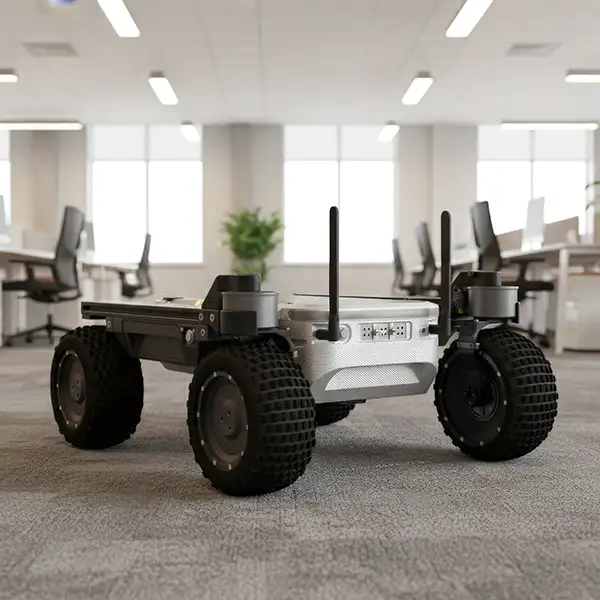

From research and industry to agriculture and construction, Raph Rover adapts to the challenges of real-world environments. Its robust design and open platform make it the ideal foundation for projects that demand reliability, precision, and innovation.

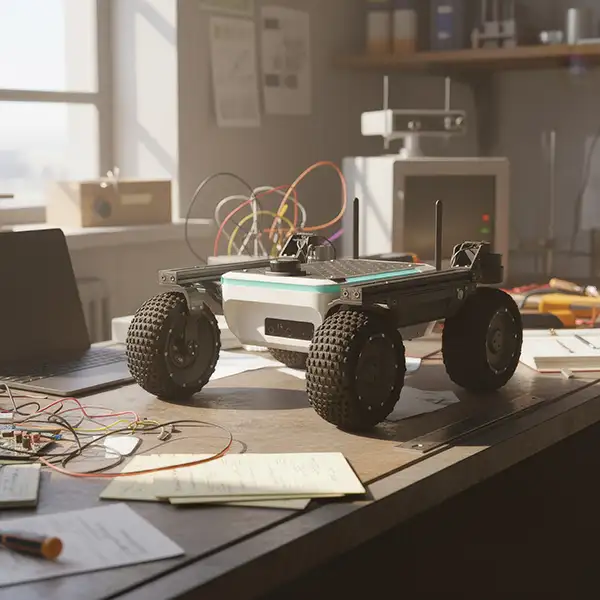

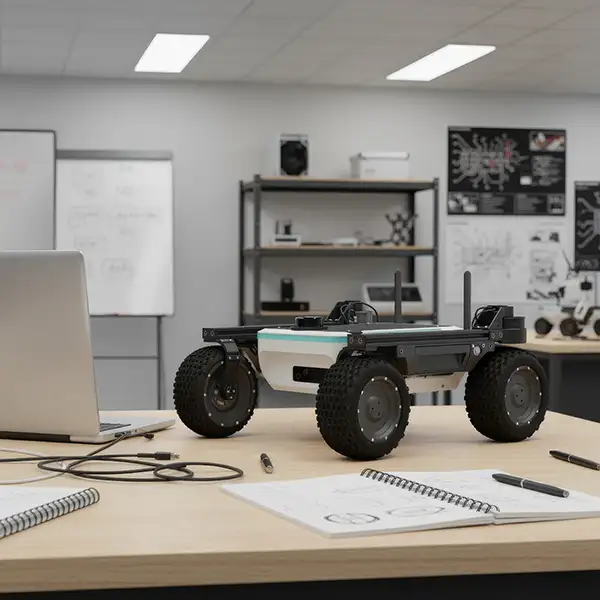

- Academic research & autonomous robotics labs
- Startup prototyping & rapid innovation
- Industrial inspections & site monitoring
- Precision agriculture & crop analysis

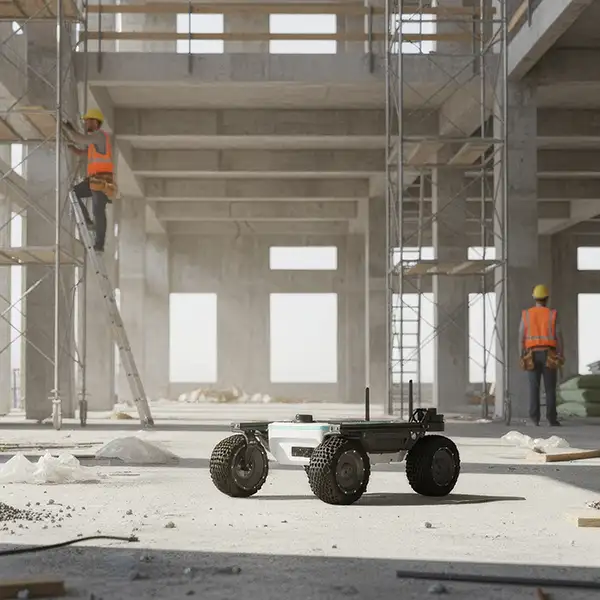

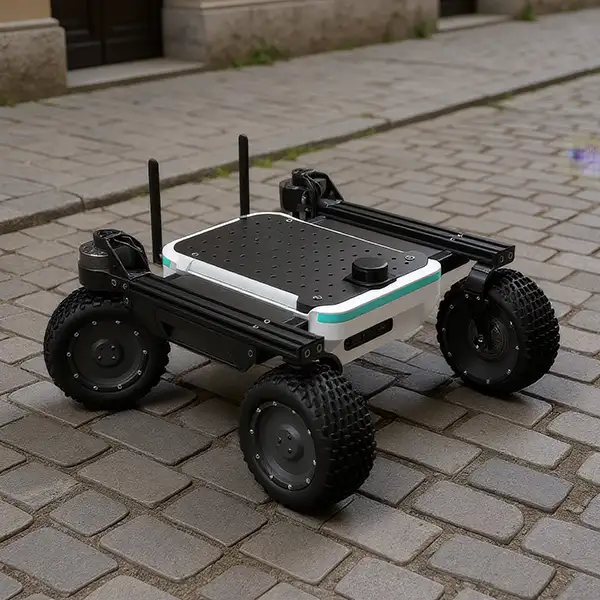

- Construction site automation & logistics
Open Source & ROS-Ready
Raph Rover gives you full development freedom — from software to hardware. With an open-source core and native ROS 2 support, it seamlessly connects to the vast ROS ecosystem, making it easier than ever to build, test, and deploy advanced robotics solutions.
Raph Rover Specs
Discover the key specifications that make Raph Rover a robust, versatile platform. Designed with scalability and durability in mind, it’s built to support your mission from day one.
- Dimensions (L×W×H): 559 mm x 474 mm x 255 mm
- Weight: 12.5 kg
- Payload: 10 kg
- Maximum linear speed: 1.8 m/s
- Maximum angular speed: 4.7 Rad/s
- IP protection rating: IP 54
- Operating temperature: -10 °C to +40 °C
- Run time: up to 4 hours with 2 batteries
- Connection range: Up to 100 m
- Data ports:UPBoard 7000 (Main computer):
- USB (type A) 3.2 Gen 1 (5 Gb/s)
- USB (type C) 3.2 Gen 21 (5 Gb/s)
- HDMI 1.4b
Teltonika RUTX10 (Router):
- 2x RJ-45 10/100/1000 Mbps - Power panel:
- 2 x 5 V (total 4 A/20 W) - Phoenix Contact MC 1,5/ 2-ST-3,5
- 2 x 12 V (total 4 A/48 W) -Phoenix Contact MC 1,5/ 2-ST-5,08
- 2 x BAT 20-25 V (total 4 A/80 W) - Phoenix Contact MSTB 2,5/ 2-ST-5,08 - Payload capacity:10 kg

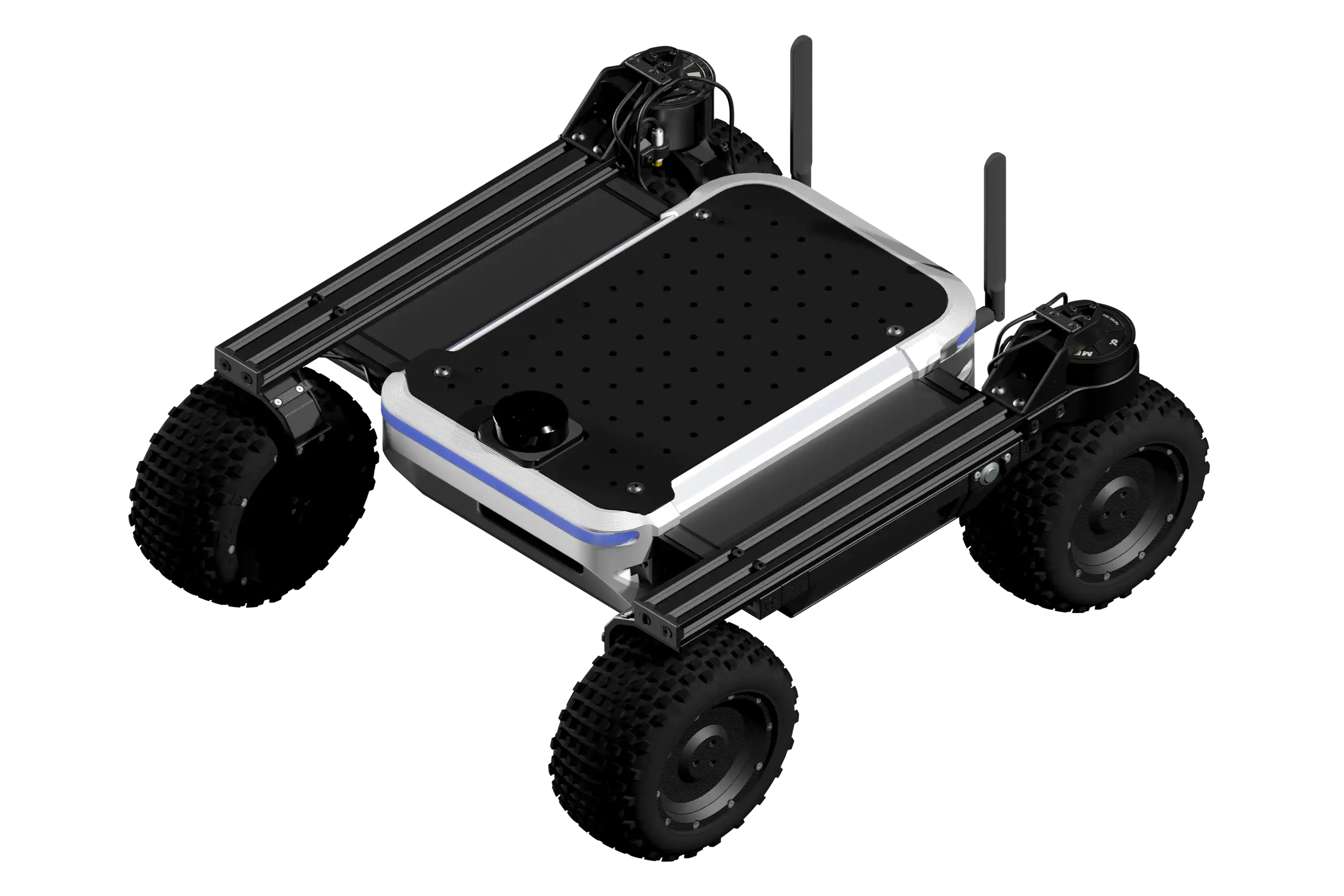

- Hole grid spacing:25 mm x 25 mm
- Mounting hole dimensions:5.4 mm, compatible with: M5 screws, CLS-M4-1 press-in nuts
- Mounting plate dimensions (L x W x D):330 mm x 198 mm x 2 mm
- Built-in computer: UPBoard 7000 - third-generation credit card-sized developer board in the UP Board series.- Processor: Intel® N100 quad-core processor.
Key features:
- Processor: Intel® N100 quad-core processor.
- Memory: 8GB LPDDR5 system memory.
- Storage: 64GB eMMC storage.
- Connectivity: 1 Gigabit LAN, HDMI 1.4b, 3 USB 3.2 Gen 2, 2 USB 2.0/UART, 40-pin GPIO header. - Router: Teltonika RUTX10 (With RUTX11 as option after beta). Router that combines the best of wired and wireless routing functionalities with Gigabit Ethernet, Bluetooth LE, and AC Wi-Fi.

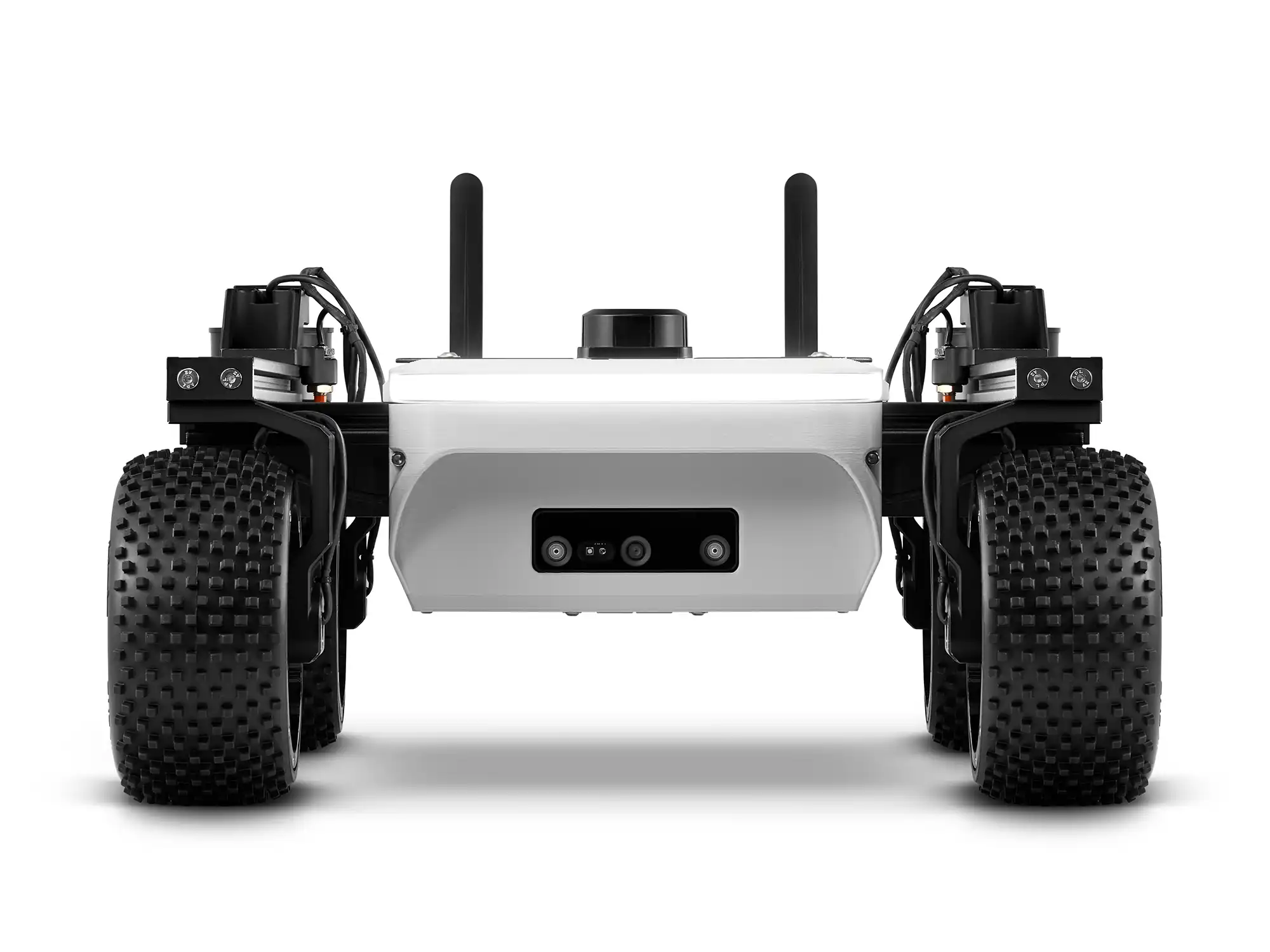

- Antenna (2x): Dual-band (2.4 GHz / 5 GHz) placed on the rear of the robot. Stereoscopic camera 1 Luxonis OAK-D Pro W is a wide-angle camera with active stereo depth and high-resolution color capabilities. It includes on-device neural network inference, computer vision features, and night vision for low-light environments.
- Lidar: RPLidar S3 - 360-degree waterproof 2D Lidar scanner with a 40-meter range. It ensures stable performance in diverse conditions, making it suitable for both indoor and outdoor use. Operating at 10Hz, it guarantees a sample rate of 32KHz.
- BLDC motors (6x): M0601C-111 BLDC motors from Direct Drive Tech. Connected to RaphCore board via RS 485 bus.
- LED strip (4x): 108 RGBW Individually addressable LEDs.
3535 form factor; 144/m, 23W/m.

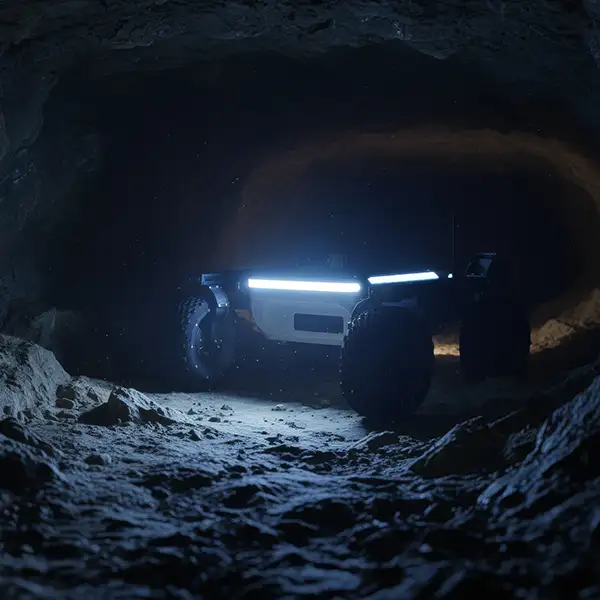

They serve as the rovers status indicator, but can be programmed for any custom behavior e.g. to work as a flashlight.
- Voltage: 22.2 V (nominal)
- Battery type: Li-Ion
- Capacity: 4 Ah (96 Wh - flight safe)
- Battery pack type: 6S1P
- Maximum output power: ~650 W
- Safety systems: Overcurrent, Reverse polarity protection

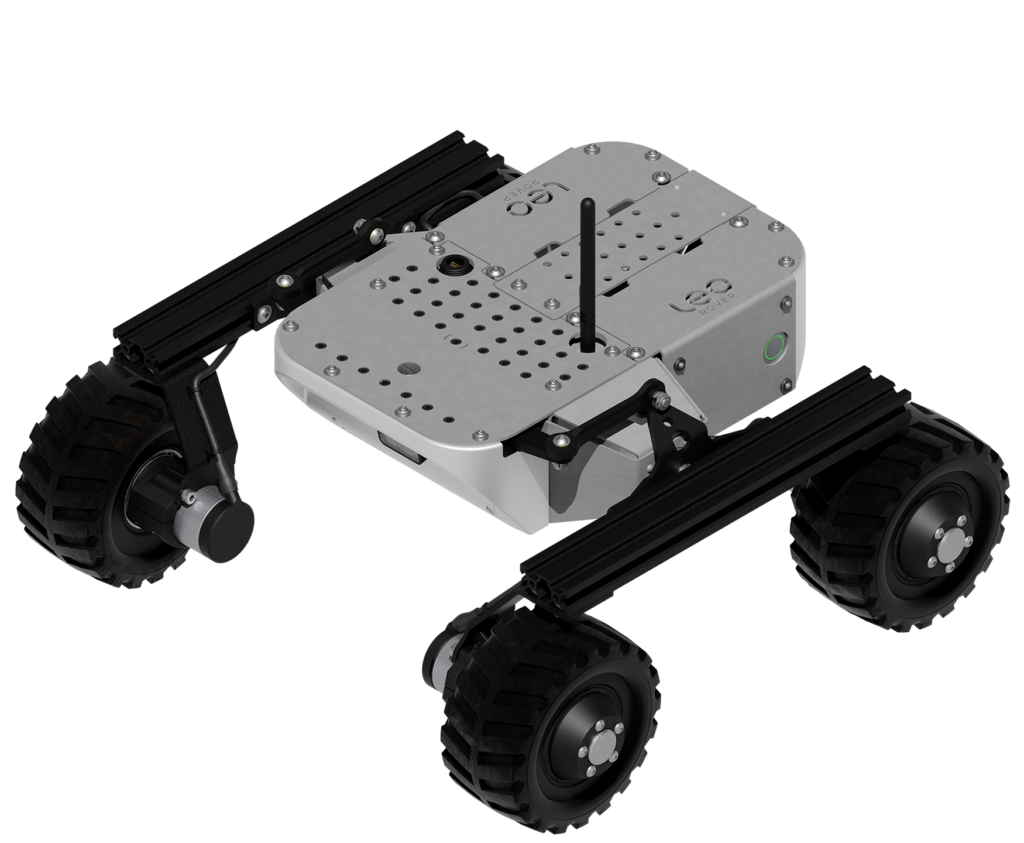

The Team Behind Raph Rover and Leo Rover
We are Fictionlab — a team of engineers and explorers passionate about building reliable mobile robots. Our rovers are trusted worldwide in research, education, and industry, and with Raph Rover we continue to deliver versatile, field-ready platforms for innovation.

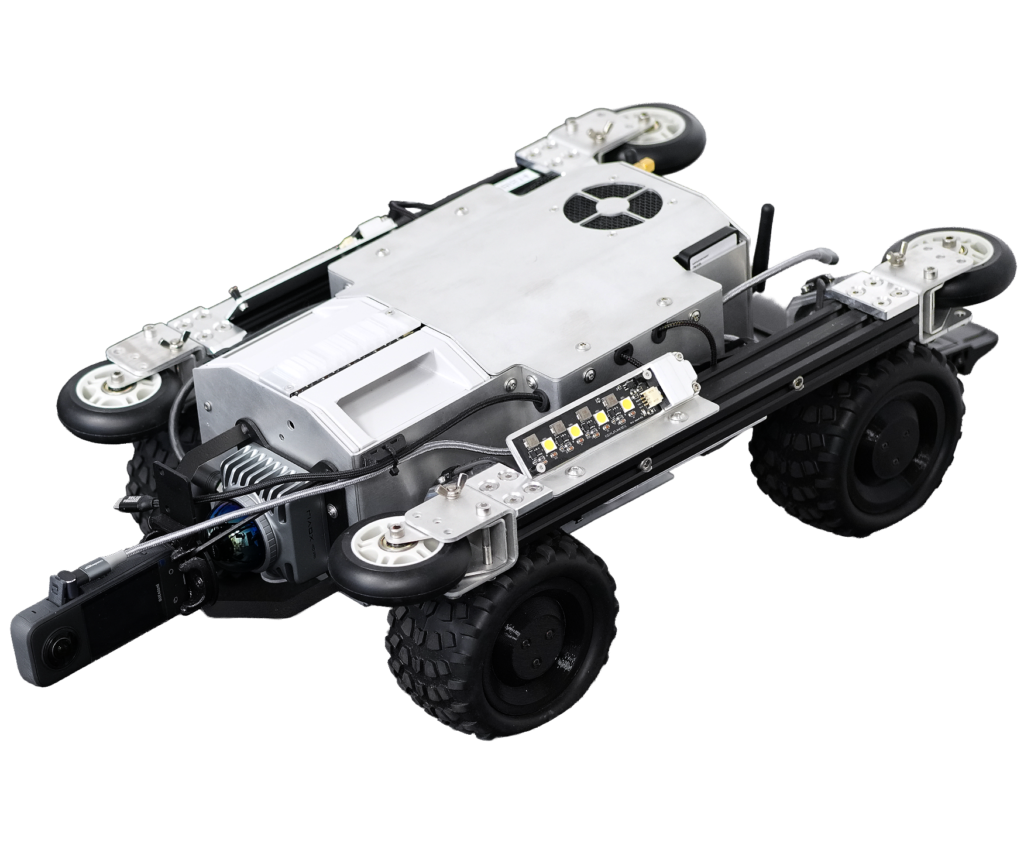

Alongside our flagship rovers, we offer Custom Robotics: design, consulting, and bespoke solutions tailored to specific needs. From specialized hardware to complete systems, we help bring unique ideas to life.
Order Raph Rover
Raph Rover - Assembled
12 950 EUR +VAT (where applicable)
Estimated shipping time:
Raph Rovers - 5 working days;
addons - please ask;
Available payment options:
- International bank transfer
- PayPal and debit/credit card
- Net30 for Universities
Yes, I would like to pre‑order Raph Rover!
